A load balancer actively distributes incoming network traffic across multiple servers or resources, optimizing resource utilization, scalability, and the availability of applications or services. It acts as a traffic manager, evenly distributing requests based on factors such as server health, workload, and predefined algorithms.
Load balancers operate at different network layers, such as the transport layer (Layer 4) or application layer (Layer 7), and provide functionalities like session persistence, SSL termination, and health monitoring. They play a critical role in ensuring high availability, scalability, and efficient resource utilization in modern IT infrastructures, enhancing overall performance and user experience.
Let’s see a diagram of how a Load Balancer operates:
Load Balancer in Practice

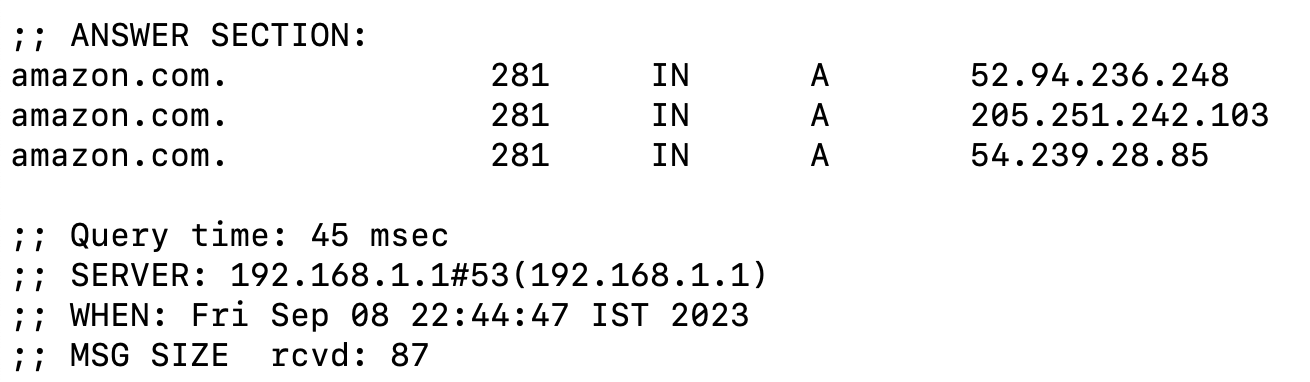

To show a real example of load balancer in action, let’s see the server IP changing on each request we make when using the dig command for the Amazon website:
dig amazon.com
Notice that every time we use the dig command to the amazon.com website a different server is accessed. Notice that in the first response we have 52.94.236.248 and in the second one we have 205.251.242.103.
Also, obiviously the Amazon webserver uses a load balancer since there is a massive amount of requests to its website.
Types of Load Balancer
Several load balancers are available, each with its own characteristics and use cases. Here are some common types of load balancers:
Layer 4 Load Balancer: A Layer 4 load balancer operates at the OSI model’s transport layer (Layer 4). It makes load-balancing decisions based on information such as source IP address, destination IP address, and ports. We often use Layer 4 load balancers for distributing traffic across multiple servers based on network-level information.
Layer 7 Load Balancer: A Layer 7 load balancer operates at the OSI model’s application layer (Layer 7). It can make load-balancing decisions based on more advanced criteria, such as specific URLs, HTTP headers, or cookies. Layer 7 load balancers can perform content-based routing and distribute traffic based on application-level information.
Hardware Load Balancer: A hardware load balancer is a physical appliance designed for load balancing. It often provides high-performance load-balancing capabilities and can handle large amounts of traffic. Software engineers typically deploy hardware load balancers on-premises data centers.
Software Load Balancer: A software load balancer is a load-balancing solution implemented in software running on general-purpose servers or virtual machines. Software load balancers can be deployed on-premises or in cloud environments, offering flexibility and scalability.
Application Delivery Controller (ADC): An ADC is a specialized load balancer that offers additional features beyond essential load balancing, such as SSL termination, caching, compression, and application-layer security. ADCs are used in enterprise environments to optimize application performance and improve security.
Cloud Load Balancer: Cloud service providers, such as Amazon Web Services (AWS) and Microsoft Azure, offer load-balancing services designed for their respective cloud platforms. These cloud load balancers are often fully managed services and provide scalability, high availability, and integration with other cloud services.
DNS Load Balancer: DNS load balancing involves distributing traffic across multiple IP addresses associated with a single domain name. DNS load balancers respond to DNS queries with different IP addresses based on load-balancing algorithms. It can be an effective method for distributing traffic across multiple servers or regions.
These are some of the common types of load balancers used in various environments. The choice of load balancer depends on the application requirements, scalability needs, deployment environment, and budget.
Microservices Load Balancer
When it comes to load balancing in microservices architectures, there are several types of load balancers commonly used to distribute traffic across the microservices. Here are the main types:
Reverse Proxy Load Balancer: A reverse proxy load balancer acts as an intermediary between clients and microservices. It receives incoming requests and forwards them to the appropriate microservice based on predefined routing rules. Reverse proxy load balancers often provide additional features such as SSL termination, request/response modification, and traffic management capabilities.
Service Mesh Load Balancer: A service mesh load balancer is a specialized load balancing component within a service mesh architecture. Service meshes, like Istio or Linkerd, provide features such as intelligent routing, load balancing, and traffic control for microservices. The service mesh load balancer operates at the sidecar level, facilitating communication between microservices and ensuring efficient traffic distribution.
Container Orchestrator Load Balancer: Container orchestrators like Kubernetes often include built-in load balancing capabilities. They use a load balancer component, such as Kubernetes Service or an Ingress controller, to distribute traffic to microservices running within containers. These load balancers can dynamically adapt to changes in the containerized environment, scaling and routing traffic based on the current state of the cluster.
DNS Load Balancer: DNS-based load balancing involves using DNS records to distribute traffic across multiple instances of microservices. Clients resolve a domain name to multiple IP addresses representing different instances of the microservice. DNS load balancing can use strategies like Round Robin or Weighted Round Robin to distribute traffic across the resolved IP addresses.
Client-Side Load Balancer: In a client-side load balancing approach, the load balancing logic resides within the client application itself. The client is responsible for selecting an appropriate microservice instance to send requests to. Client-side load balancers often employ dynamic service discovery mechanisms to obtain information about available microservices and make load balancing decisions based on factors like latency, health, or proximity.
These are the primary types of load balancers commonly used in microservices architectures. The choice of load balancer depends on factors such as the specific requirements of the microservices environment, the level of control and flexibility needed, and the tools or platforms being used to manage and orchestrate the microservices.
Weighted Round Robin Load balancer
A Weighted Round Robin (WRR) load balancer is a type of load balancing algorithm that distributes incoming traffic across multiple servers or backend resources based on predefined weights. In a WRR load balancer, each server is assigned a weight that represents its capacity or performance capability. The weight determines the proportion of traffic that each server receives during load balancing.
Here’s how a Weighted Round Robin load balancer typically works:
Server Weight Assignment: Each server in the load balancer pool is assigned a weight value. The weight value can be an integer or a relative value representing the server’s capacity or performance. Servers with higher weights are allocated a larger share of the traffic.
Load Balancing Algorithm: When a new request arrives, the WRR load balancer follows a round-robin scheduling algorithm to distribute the traffic. However, the selection of the next server to receive the request is influenced by the assigned weights.
Traffic Distribution: The load balancer maintains a pointer or index that keeps track of the current server in the rotation. The load balancer selects the server using the round-robin algorithm, but the server with the highest weight value is selected more frequently than servers with lower weights.
Weight Adjustment: The weight assigned to each server can be adjusted dynamically based on factors such as server health, resource utilization, or performance metrics. This allows for dynamic load balancing based on real-time conditions.
The key advantage of using a Weighted Round Robin load balancer is the ability to allocate traffic more intelligently based on the capacity or performance of individual servers. This approach ensures that servers with higher capacities receive a larger share of the traffic, leading to better utilization of resources and improved overall system performance.
It’s worth noting that Weighted Round Robin is just one of several load balancing algorithms available. Other algorithms, such as Least Connections, IP Hash, or Least Response Time, may be more suitable depending on the specific requirements and characteristics of the application or environment.
Conclusion
In conclusion, load balancers are critical components in modern computing infrastructure that optimize the distribution of network traffic, enhance application performance, and ensure high availability. By evenly allocating traffic across multiple servers or backend resources, load balancers prevent overloading, reduce response times, and deliver a seamless user experience.
They play a key role in scaling applications, handling high traffic loads, and adapting to changing demands, all while maintaining the reliability and availability of the system. Load balancers are indispensable tools for organizations seeking to optimize resource utilization, improve application responsiveness, and provide reliable and efficient services to their users.
